1. No. of stage: 4
2. Frequency of operation: About 100MHz
3. Antenna type: Folded 300 ohms dipole.
4. Range obtained in free space: Up to 4km with dipole antenna 30 feet above ground level. More range with yagi antenna.

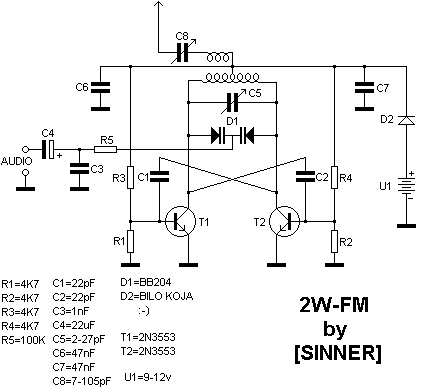

Fig: Circuit diagram of the Transmitter
Brief Description:
The transmitter is built on a Printed Circuit Board. This board uses track inductor for L1, L2 and part of L3. The section built around Q1 is the oscillator section. Oscillation frequency is determined by L1, C4 & C5 which forms the tank. Actually C5 is the feedback capacitor. This is required to sustain oscillation. This also influence the operation of tank formed by L1 & C4. Modulation is directly applied to the base of Q1 via C2. A microphone is connected here to serve this purpose. You can alternately feed direct audio here after disconnecting the microphone biasing resistor R1. Q2, Q3 & Q4 gradually raises the output power up to the desired level.
As most of the inductors are PCB etched, there is practically very little frequency drift provided you use a highly regulated and ripple free power supply.
RF output from the transmitter is taken from the junction of C11 & C12. This is unbalanced output of around 75 ohms impedance. But a folded dipole is a balanced type antenna of around 300 ohms impedance. So we need to use a 'BALanced to UNbalanced transformer' or 'BALUN'. A 1:4 type BALUN is employed here for this purpose. Antenna connection is taken from this BALUN via a 300 ohms flat parallel feeder cable commonly used in television to receive terrestrial broadcast. No coaxia is used to feed antenna. This saves cost. Also a parallel feeder cable provides much less signal loss compared to a coaxial.
